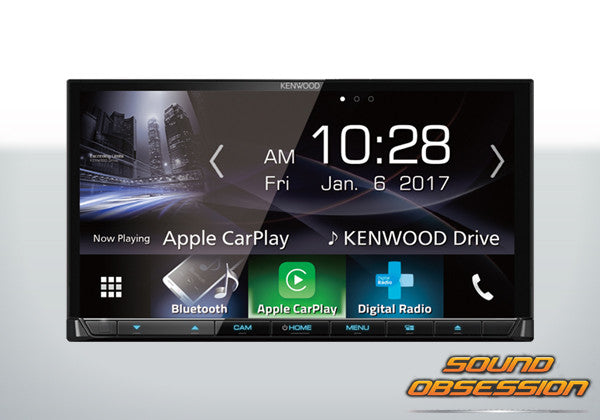

Kenwood DDX9017DABS 7" Capacitive Touch AV Receiver with Built-in Wi-Fi

Kenwood DDX9017DABS 7" Capacitive Touch AV Receiver with Built-in Wi-Fi


Regular price $1,199.00 Sale price $1,099.00

Apple CarPlay

Apple CarPlay takes the things you want to do with your iPhone while driving and puts them right on the DDX9/DNX9 & 5 series screen. You can get directions, make calls and listen to music, all in a way that allows you to stay focused on the road. Just plug in your iPhone and go. CarPlay is compatible with iPhone 5 and higher iPhones.

Android Auto™

Android Auto™ is an app that makes it easier to use Google apps such as Google Maps, Google Play Music, your phone's dialer, etc. You can get the Android Auto app on Google Play. Android Auto is available with Android phones running 5.0 (Lollipop) or higher.

Spotify on Kenwood 2-Way Communication

Ability to control content from the Spotify App on iPhone and Android devices
as a dedicated source on the receivers. Listeners can play and skip tracks,
browse playlists, albums and radio stations via the Kenwood touch screen.
Spotify works over Bluetooth for Android devices and Bluetooth or USB cable for iPhone.

Bluetooth® v3.0

Dual phone hands-free ready. Hands-Free Profile 1.6 for natural sound.

AAC for iPhone

High quality BT music streaming for iPhone via advanced audio coding technology.

Built-in "Air Mirroring" over Wi-Fi®

Air Mirroring is a groundbreaking solution for seamlessly displaying your Android apps on a DDX9/DNX9 series screen without cables or a network connection.
2-way communication (touch control) can be supported for selected Android Smartphones.

Dual USB

Supports FAT 16 / 32 and NTFS.
Video: MKV / MPEG1,2,4 / H.264 / WMV
USB Video Output to Rear Monitor.
Audio: FLAC / DSD / AAC / WAV / MP3 / WMA

Max 1.5A Quick Charge

For selected Android Smartphones.

Dual Camera Inputs

Includes Rear Camera Guideline.

Direct OEM Steering Remote

*Direct OEM Steering Function which with most Japanease and Korean vehicles.

High-Resolution AudioHigh Resolution Audio

Can play 192kHz / 24bit audio files, also upconverts all AV sources including radio to 192kHz / 32bit and reproduces high resolution sound.
13-Band EQ and Digital Time Alignment.
High Voltage 4.0V / 3-Preouts.
3 Way X'over Mode for advanced sound tuning.


Monitor Section

Screen size: 6.95 inches(diagonal) wide, WxH 156.6x81.6 mm
Display system: TN LCD panel
Drive system: TFT active matrix system
Number of pixels: 1,152,000 (800Hx480V RGB)
Effective pixels: 99.99%
Pixel arrangement: RGB striped arrangement
Back lighting: LED

DVD Section

D/A Converter: 24 / 32Bit
Audio Decoder: Linear PCM, Dolby Digital, MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wow & Flutter: Below Measurable Limit
Frequency response
  96k Sampling: 20 - 44,000 Hz
  48k Sampling: 20 - 22,000 Hz
  44.1k Sampling: 20 - 20,000 Hz
Total harmonic distortion 1kHz: 0.010%
Signal to Noise ratio: 90.5dB
Dynamic range: 89dB
DISC Format: DVD-Video / VIDEO-CD / CD-DA
Quantifying bit number: 16 / 20 / 24bit

USB I/F Section

USB Standard: USB2.0 High Speed
File System: FAT 16/32, exFAT, NTFS
Maximum Power Supply Current: DC5V=1.5A
D/A Converter: 24/32Bit
Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis / DSD
Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV

Miracast Section

Mode: Sink
Copyright protection: HDCP2.2
Touch Control: UIBC


IEEE Standard: 802.11 b/g/n
Frequency Range: 2.4GHz
Channels: Auto(1-11ch)
Transfer rates (MAX)
  11b: 11 Mbps
  11g: 54 Mbps / 11n:150 Mbps
Output Power
  11b: 17dBm±2dB
  11g:15dBm±2dB / 11n:14dBm±2dB

Bluetooth Section

Technology: Bluetooth Ver3.0
Frequency: 2.402 – 2.480 GHz
Output Power: +4dBm (MAX),0dBm (AVE) Power Class 2
Maximum Communication range: Line of sight approx.10m(32.8ft)
Audio Codec: SBC / AAC
Multi Profile Support: Multi Profile
  HFP (V1.6) (Hands Free Profile)
  SPP (Serial Port Profile)
  A2DP (Advanced Audio Distribution Profile)
  AVRCP (V1.5) (Audio/Video Remote Control Profile)
  PBAP (Phonebook Access Profile)

DSP Section

Graphics equalizer
  BAND: 13Band
  Frequency (Hz) (BAND1-7,1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
  Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over
  HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
  SLOPE: -6/-12/-18/-24[dB/Oct.]
  LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
  SLOPE: -6/-12/-18/-24[dB/Oct.]
3Way X'Over
  HIGH PASS FILTER frequency: 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
  SLOPE: -6/-12[dB/Oct.]
  Band PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz], 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k/Through
  SLOPE: -6/-12[dB/Oct.]
  LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
  SLOPE: -6/-12[dB/Oct.]
  Front / Rear /Subwoofer Delay: 0 - 6.1m (0.01m Step)
  Gain: -8 to 0dB
Subwoofer Level: -50 to +10dB


Frequency Range: 87.5MHz - 108.0MHz
Frequency step: 50kHz
Usable sensitivity: 9.3dBf
S/N:26dB: 0.8μV/75Ω
Quieting sensitivity: 15.2dBf
S/N:46dB: 1.6μV/75Ohms
Frequency response: 30Hz - 15kHz
S/N (dB): 75dB (MONO)
Selectivity: Over 80dB (±400kHz)
Stereo separation: 45dB (1kHz)


Frequency Range: 531kHz - 1602kHz
Frequency step: 9kHz
Usable sensitivity: 25μV


Color system of external video input: NTSC / PAL
External video input level (Mini jacks): 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks): 2 V / 25 kOhms
Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks): 1.2 V / 10 kOhms


Maximum Power Output (Front&Rear): 50Wx4
Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22Wx4
Output frequency band: 20 - 88,000Hz
Preout level (V): 5V / 10kOhms
Preout impedance (Ω): =< 300Ohms
Speaker Impedance (Ω): 4-8 Ohms


Operating voltage: 14.4V (10.5V to 16V)
Maximum Current consumption: 15A
Installation Dimensions WxHxD: 178mm x 100mm x 160mm
Operational temperature range: -10°C to +60°C
Weight Main unit: 2.4 Kg
