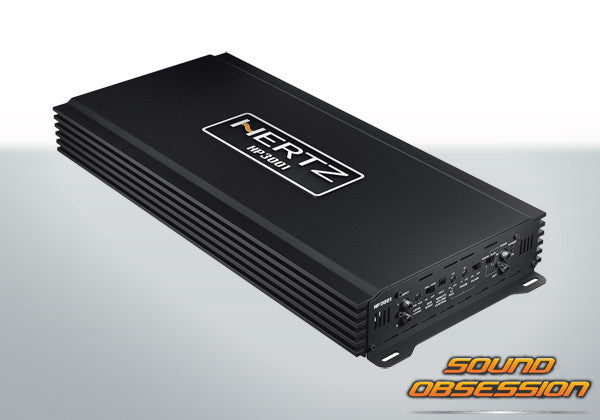

Hertz HP3001 D-Class Mono Amplifier
HP 3001 is a D Class mono spl car audio amplifier, able to provide 6000W power for the subwoofer, and ensuring terrific performance if two of these amps are used to drive the front woofers (up to 500 Hz). The design of the printed circuit boards, the components featured on the output stage have been designed to comply with strict requirements of reliability, power and thermal dissipation. The wide array of possible setups, with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control and remote volume control, provides the ability to set HP 3001 in different systems; also, thanks to a Chain Mode function to cascade a second amplifier into a single load, 7200W power can be achieved with very high SPL levels.
Channel mode: 1
Output Power (RMS) @ 14.4 VDC
1 Ch: 1200 W x 1 (4 Ω)
1 Ch: 2000 W x 1 (2 Ω)
1 Ch: 3000 W x 1 (1 Ω)
Lo-Pass: 50 ÷ 400 Hz @ 24 dB/Oct.
Distortion - THD (100Hz @ 4Ω): 0.1 %
S/N Ratio (A weighted @ 1V): 96 dB
Damping factor (100Hz @ 4Ω): 150
Size W x D x H mm: 544 x 240 x 65.5
OVERBUILT POWER SUPPLY STAGE
In order to deliver such extraordinarily high power and to transfer it uninterruptedly, the power supply stage features multiple toroidal transformers, 105° Low ESR primary capacitors, TO247 Mosfets and large tank-type secondary capacitors.
CIRCUIT BOARDS AND COMPONENT DESIGNED SPECIFICALLY FOR SPL SYSTEMS
Inside the amplifier, the electronics have been designed specifically for SPL systems, driving low impedance loads with perfect thermal stability. Power for sound pressure without compromise.
ULTRA-VERSATILE AND COMPLETE CONTROL AND FILTER SYSTEM
The Front End section features a complete crossover system, for endless configuration possibilities. HP 3001/HP 6001 mono models are provided with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control, remote volume control (HRC) and also a Chain Mode function to cascade-connect a second amplifier, achieving maximum SPL levels.
ALUMINIUM EXTRUDED HEATSINK WITH MASSIVE FINS FOR UNPARALLELED THERMAL STABILITY
Aluminium extruded heatsink with enhanced thermal performance. Following the style of Hertz, the Hertz logo has been tastefully integrated into the top of the HP heatsink, and massive fins are featured along the side of the amplifier.
