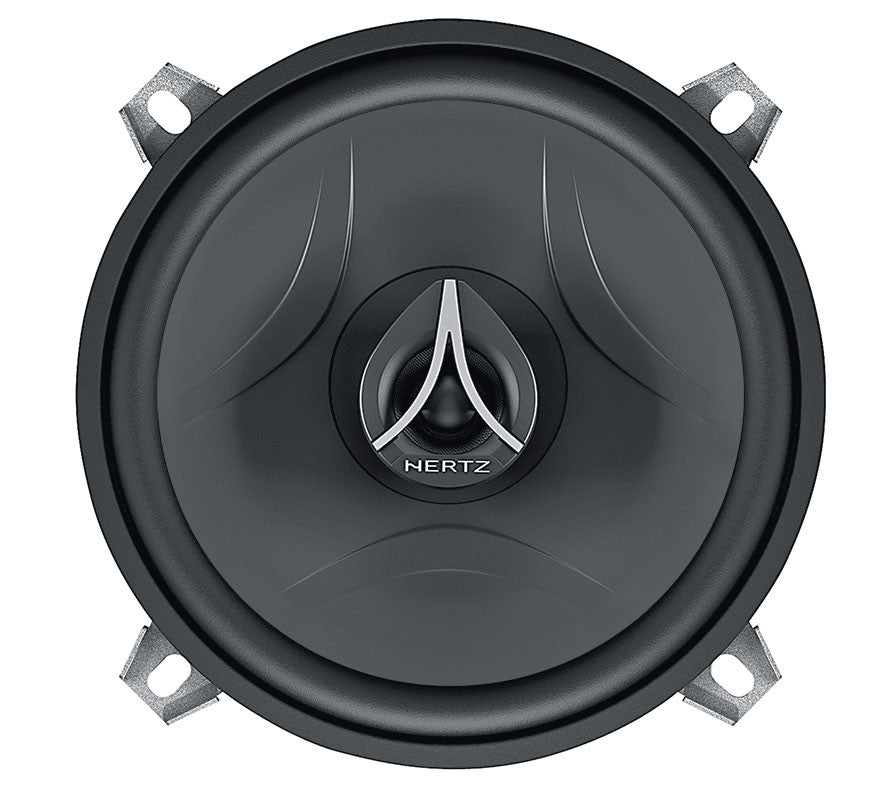

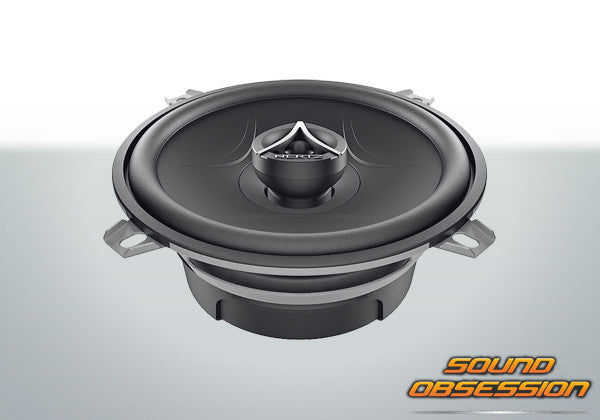

Hertz ECX130.5 Energy 5.25" Coaxial Speakers



This product is not available online.
Please contact us to purchase.

The Energy.5 ECX 130.5 coaxial is the solution for those who want to reproduce a wide frequency range without the need of separate components: the coax tweeter adds to the woofer response optimizing the installation-friendliness.
Neodymium tweeter with built-in crossover, pressed-paper cone with deep ribbings for maximum rigidity and accurate optimization of the motor assembly contribute to enhance sound linearity, off-axis response and timbre quality. Thanks to the RHFC technology, the tweeter can be oriented, being 10° angled, to control dispersion and get close to the ideal frequency response.


Power Handling - Peak W: 150
Power Handling - Continuous W: 50
Impedance Ω: 4
Frequency response Hz: 70 ÷ 23k
Sensitivity dB SPL: 93
Woofer size mm: 130
Tweeter size mm: 24
Woofer Voice Coil Ø mm: 25
Tweeter voice coil Ø mm: 15
Woofer magnet: High density flux ferrite
Tweeter magnet: Neodymium
Woofer cone: Water-repellent pressed paper
Tweeter dome: PEI


Rotary High Frequency Contour

The tweeter group is adjustable and can be oriented towards the listening point. This means no limits to the installation: with the RHFC system you can tune the response for any listening point. For perfect off-axis dispersion and frequency response.
