Clarion NZ502A 7" DVD Multimedia Station With Built-in Navigation

Features

・7-inch digital touch panel WVGA monitor
・CD/SD/MP3/WMA/DVD/MPEG4 playback
・18FM, 12AM station presets
・Built-in Parrot Bluetooth Interface (HFP, HSP, OPP, A2DP, AVRCP, DUN, PBAP)
・Built-in Microphone and external microphone ready with optional RCB199
・(2) Audio/Video inputs (front 3.5mm, rear RCA)
・2-zone entertainment: front and rear separate source control
・Rear USB Port with iPod direct connect capabilities
・iPod Audio/Video control with optional CCA748 or CCA750 iPod interface cable
・Rear vision camera composite video input
・Built-in NAVTEQ mapping on preloaded microSD card
・Text to speech for street announcements
・4 × 50 W MOS-FET power amplifier
・4V/6 channel audio pre-out
・Subwoofer level control
・24-bit D/A converter
・Built-in Low pass / High pass filters
・Magna Bass EX dynamic bass enhancement
・BEAT EQ for sound adjustment
・OEM steering wheel remote ready
・Wireless remote control included
・Latest Map Guarantee

Flick operation makes control more intuitive than ever

The interactive touch screen supports flick operation, so you can quickly scroll to another menu page. Sound familiar? Yes, it operates just like a smartphone screen. Plus, feature icons are animated for an enhanced appearance, and can be dragged and dropped into different positions to customise the way you want.

Parrot Bluetooth for hands-free communication, access to phonebook and audio streaming

Built-in Parrot Bluetooth provides hands-free telephone communication, with comprehensive compatibility to a variety of mobile phones.
With a built-in microphone and Phonebook access, you can safely talk and drive at the same time. Play music stored on your mobile phone with Bluetooth audio streaming.

* Dependent on mobile phone.
* Please see our website for details of compatible Bluetooth mobile phones.

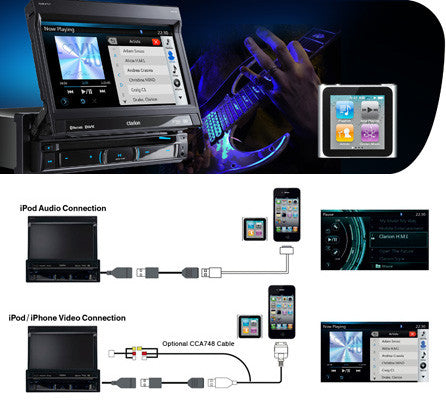

Made for iPod and Made for iPhone for seamless integration

Made for iPod and Made for iPhone certified, so you can enjoy the convenience of iPod/iPhone ABC Search to quickly access tunes, with a simple control mode to allow operation using the iPod/iPhone controls. Album Artwork is displayed to visually enhance interactivity.

* For audio playback, please use the USB cable provided with your iPod / iPhone.
* For video playback, an optional CCA748 cable is required.

Watch a wide variety of visual content with DVD/MP4 compatibility

In addition to store-bought and rental DVDs, you can also watch home-burned DVDs and MP4 files. So compatible video files recorded using a camcorder or smartphone can be stored on SD card or DVD-R disc and viewed on the main unit. Make your own entertainment!

Get there in style with GPS navigation and rich support functions

The NZ502A features a built-in car navigation system with simple destination input, turn-by-turn voice prompts, selectable route guidance — everything you need to reach your destination quickly and efficiently. Pre-loaded with 12 million points of interest, its database includes national parks, restaurants, petrol stations and much more.

Start using Clarion mobile map
Get going in no time! Easily recognisable icons and a map display that emphasises usability will guide you to your destination.

Easy navigation map updates
It is easy to keep the navigation system up to date. Simply download new map data from Clarion’s portal site, store them on a microSD card and insert it into the NZ502A via the front card slot.

Map coverage:
Australia & New Zealand

GUI & voice guidance
・Navigation voice guidance : English AU, English UK, English US, French, German, Italian, Croatian, Greek, Romanian, Russian, Serbian, Turkish, Arabic, Hebrew, Indonesian, Chinese (Mandarin), Chinese (Cantonese)
・Text to speech voice : English Australian

HEMA Track (4WD)

Included as standard on NX702A, NX502A & NZ502A, NAVTEQ Off-Road provides information needed to find and navigate off-road courses with over 1,000 tracks across Australia. This 4WD specific information includes data from leading off-road map supplier HEMA®. With true 4WD Tracks, Mines, Collieries and much more, you can experience both the best of on-road and off-road navigation.

SUNA Live Traffic

With up-to-the-minute information of traffic incidents including accidents, road closures, traffic congestion, major road works and special events. This service covers more than 95% of the Australian main metropolitan population. Through the premium Navigation software you can customise the Live Traffic service to best suit your requirements. Expect Clarion to provide you with this much control of Live Traffic content.

SUNA Predictive Traffic (Smart Traffic)

Everyone knows that travel times are impacted by routine congestion – but most other navigation products don’t take this into account! Standard across all 2012 Navigation products is SUNA Predictive Traffic, also known as “Smart Traffic”. SUNA Predictive data was created to address the automotive and consumer electronics industries’ need to provide motorists improved routing & travel time advice in advanced navigation applications.

1-DIN all-in-one multimedia unit

When it comes to bringing multimedia functions with navigation to the car interior even if there is only limited space, the NZ502A offers a great advantage with its 1-DIN design.

Sound-centered features create the ideal listening environment

2-zone entertainment

This allows rear seat passengers to enjoy a DVD movie or iPod Video while the front seat passengers enjoy their favourite radio station or music from a USB memory device.

Beat EQ for User Customisable Sound

In addition to providing 3 preset equalisation patterns — BASS BOOST, IMPACT and EXCITE — Clarion’s Beat EQ allows you the freedom to customise the level and range of the bass, midrange and treble portions of each pattern. You can adjust the sound to your liking, depending on the genre of music, for a more fulfilling listening experience.

Built-in High Pass and Low Pass Filters

The internal High Pass and Low Pass Filters allow your music to be played at the precise levels that they were meant to be heard. Enjoy bass with more muscle and highs with more clarity.

24-bit D/A converter

Fully enjoy the sonic impact of DVD movie soundtracks or music videos. 24-bit technology actually oversamples the digital signal, providing excellent results that just weren’t possible with older 16-bit systems.

4V / 6-channel audio pre-out makes it easy to expand and upgrade

With 3 sets of RCA outputs, with 2 channels each, you are free to add external power amplifiers to create a more powerful, sophisticated audio system. What’s more, the 4 volt output ensures a pure, high quality signal for the entire sound system.

Specifications

MONITOR SECTION

Screen Size (W × H) (inches): 7
Aspect Ratio: 16:9
Display Type: Transmission type TN liquid crystal display
Drive Principle: TFT (thin-film transistor) active matrix display
Number of Pixels: 1,152,000
RCA Video Input: 1.0 Vp-p (input impedance 75Ω)
RCA Audio Input:
  High: 325mVrms
  Mid: 650mVrms
  Low: 1.3Vrms

TUNER SECTION

Frequency Bands: FM/AM
FM: (MHz) 0.05 MHz steps: 87.5 to 108.0
AM: (kHz) 9 kHz steps: 531 to 1,629

DVD SECTION

Useable Discs: DVD video / DVD ± R/RW
Frequency Response (Hz): 20 to 20,000(48kHz)(0 ± 3db)
Distortion (%): 0.05

CD SECTION

S/N Ratio (dB) 1 kHz: 95
Frequency Response (Hz): 20 to 20,000(44.1kHz)(0 ± 3db)
Dynamic Range (dB) 1 kHz: 95
Distortion (%): 0.05

AUDIO SECTION

Power Output (CEA2006 Power Ratings): 4 × 19W

GENERAL

Dimensions (W × H × D) (inches): 7 × 2 × 7-11/16
Power Consumption: 4.0A (at 1W)
Power Requirement: 14.4V DC (10.8 ~ 15.6V)
Speaker Impedance: 4Ω (4Ω to 8Ω allowable)
