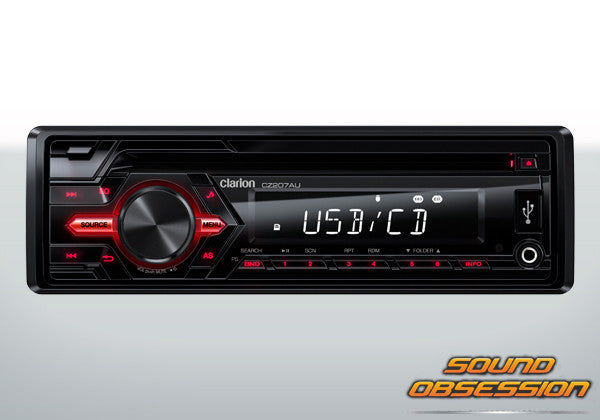

Clarion CZ207AU CD/USB/AUX-IN/SD/MP3/WMA RECEIVER

Clarion CZ207AU CD/USB/AUX-IN/SD/MP3/WMA RECEIVER

Clarion

$159.00


Edgy design featuring vivid red illumination on a black based body

With a black body that would match any dashboard, this device is the perfect accessory for your car-especially with easy-to-reach buttons located right next to a large volume knob.

Easy to see controls balance good looks with usability

Key functions are positioned close for easy access. Even selecting songs stored on a connected Portable audio or USB memory is made simple. Switching between sources like CD and USB, as well as selecting your preferred sound settings, can be done easily and close to the volume knob.

14-segment 8-digit 1-line LCD

The 14-segment 1-line display on the CZ207AU allows numbers and characters to be displayed clearly - in all lighting conditions. Whether you want to know what song is playing or just need to know the time, it’s always easy to see.

Media connectivity

Multimedia support including iPhone®, MP3 / WMA compatible front USB or SD memory and CD-R / RW discs

Just connect your iPhone to the source unit’s USB port to access and play music through your car’s audio system. Music search is possible using the source unit’s controls. The front USB slot also supports playback of MP3 and WMA format audio files, so you can save your favourite music onto a USB or SD memory device and enjoy them in your car. And since CD-R and CD-RW discs are supported, you can play music discs created at home in addition to the store-bought CDs.

Superior iPod® and iPhone® connectivity

Enjoy the familiar control and feel of your iPhone, with ALBUM / ARTIST / SONG LIST on screen display and List back operation. Simple control mode lets you easily operate the system using the controls on your iPhone, including ABC Search to quickly access your songs.

* For audio playback, please use the USB cable provided with your iPod and iPhone.

Front AUX input lets you easily connect to external sources

You may have a wide variety of music sources, from the latest digital device to the antiquated analog machine. Whatever it is, as long as it has an AUX output or headphone jack, you can easily attach it to the source unit’s front panel AUX input, to continue enjoying your favourite music source.

Sound technology

Beat EQ for Customisable sound

This radio provide 11 preset equalization patterns EQ FLAT, EQ JAZZ, EQ POP, EQ CLASS, EQ ROCK, EQ NEWS, EQ URBAN, EQ RAVE, EQ MOVIE, EQ TECHN and EQ USER, further in EQ USER lets you freely customise the level an range of the BASS, MIDRANGE and TREBLE portions. You can tune the sound to your liking, depending on the category of music, for a more personalized and fulfilling listening experience.

Low Pass Filter for subwoofer

Switching on the Low Pass Filter (LPF) will send only the low frequency range through specified outputs to ensure superb performance when connected to a subwoofer.

2V / 6-channel audio pre-out makes it easy to expand and upgrade

With 3 sets of RCA outputs, you are free to add external power amplifiers to create a more powerful, sophisticated audio system. Also, independent volume control is enabled for the subwoofer so you can adjust the level of bass output to your liking at any time, regardless of the output level of the other channels.

Specifications

TUNER

Frequency bands: FM/AM
FM : (MHz) 0.05MHz steps: 87.5 to 108
AM : (kHz) 9 kHz steps: 531 to 1,629
FM usable sensitivity (dBf): 8
FM 50 dB quieting sensitivity (dBf): 17
FM alternate channel selectivity (dB): 60
FM stereo separation @1 kHz (dB): 30
FM stereo freq. resp. @ ±3 dB (Hz): 30 to 15,000

CONNECTION FOR USB

USB requirements: USB 1.1/2.0
USB class: Mass storage class
File system: FAT 12/16/32
MP3 decoding: MPEG-1/2 AUDIO layer-3
WMA decoding: Windows Media™ audio

CD

S/N ratio (dB): More than 75 dB
Frequency response (Hz): 20 to 20,000
Dynamic range (dB): 93
Harmonic distortion (%): 0.1

AUDIO

Power output: 4×45W

GENERAL

Dimensions (W×H×D) (mm): 188×57.8×196
Remote control (W×H×D) (Approx mm): 70×34×10
Weight (kg): 1.5
Power requirement: 14.4 DC (10.8 - 15.6 V allowable)
Power consumption: less than 15 A
Speaker impedance: 4Ω (4Ω to 8Ω allowable)
Pre-maximum output voltage: 2V / 10 kΩ
Maximum mounting angle: 30°



Remote control included
