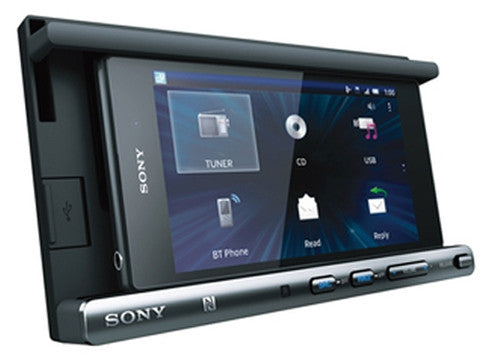

Sony XSPN1BT CD Smartphone Cradle Receiver with Bluetooth
Sony
Features
•Cradle and high current charging
•NFC, AppRemote2 (Voice command, Message read-out, Sound setting)
•55W, 3pre 5V, Time Alignment, EQ10, Clear Audio+
•CD, USB/iPod, Bluetooth(Audio streaming, Hands-free)
•Magnetic connector charging
•USB High charge
Amp & General Feature
Max Output Power(4ohm, 1kHz,16V)(W): 55W
Pre Out: 3pre
Rear/Sub initial: NA
High Voltage Pre Out: 5V
Sub Out: Yes
Aux-In: No
USB: Yes (Front)
Time Alignment Preset: Yes
Time Alignment Custom: Yes (Adjustment)
Rear Bass Enhancer: Yes
EQ: Yes (EQ10)
Loudness: Yes
High Pass Filter: Yes (OFF/50/60/80/100/120)
Low Pass Filter: Yes (50/60/80/100/120)
Advanced Auto Volume: Yes
Subwoofer Direct Connection: Yes
Digital Sound Enhancement Engine: Yes
ClearAudio+: Yes
Tuner Feature
Preset: FM18/AM12
FM 50k/100k/200k change: Yes
AM 9K/10K change: Yes
AM 9K/10K initial: 9k
RDS/EON (NA Only:RBDS,Others:RDS): Yes
AUX in Feature
Level Adjustment: NA
Panel Design
Key illumination: Blue, Amber
Display Device(LCD/FL/OEL/TFT): LCD (with Acryl)
Display Color(Color Variation/Nega or Posi): Black color/Negative
USB Shutter: Yes
Display Panel
Key Illumination initial: Blue
Dimmer Adjust: Manual
Black out mode: Yes
Auto off mode: Yes
Other features
Clock: 12H
Sub panel illumination color: White (Eject Key)
Detachable Panel: Caution Alarm for Smartphone
Steering Wheel Remote Input: Yes
Card Remote ( ):Option: Yes, RM-X311
iPod Control Feature
Repeat: Yes (Track, Album, Artist, Playlist, Genre, Podcast)
Shuffle: Yes (Genre, Album, Artist, Playlist, Device, Podcast)
Pause: Yes
Resume Play: Yes
CODEC (for iPod): depend on iPod
List Browsing (Folders / Files): Yes
Passenger Control: Yes
Acc'y Info: Yes
Pandora Link (USB): Yes
App Remote (USB): Yes
BT Spec.
Version: Bluetooth Version 3.0
Secure Simple Pairing: Yes
Bluetooth Profile
HFP: Yes (version1.6)
A2DP: Yes (version1.3)
SPP: Yes
AVRCP: Yes (version1.5)
PBAP: Yes
MAP: Yes
HID: Yes
Bluetooth Feature
Speed dial: Yes (6x1=6memories)
Call history (#of): Yes(20 numbers via PBAP)
Last dialed call: Yes
Phonebook Access via PBAP: Yes
Call history browse with PBAP: Yes (Combined call)
Connection status (maximum #): [1HFP/PBAP+1Audio]
# of records connected: 9 (HFP+Audio)
RF ON/OFF: Yes
Internal ringtone: 1(Sony Ericsson PCM)
Echo/noise canceller: Yes (mode1/mode2)
Ring alert select: Yes (Internal/Cellular)
Ring volume level control: Yes
Call volume level control: Yes
MIC GAIN Adjustment: Yes (Low/Mid/Hi)
Voice Control: Yes
External microphone: Yes
Bluetooth Audio Feature
Audio Codec: SBC
PAUSE: Yes
CUE/REV: Yes
TRACK +/-: Yes
Audio Level Adjustment: Yes (-6dB - +6dB)
Meta Data Indication: Yes
Other features
Device Name: Sony Car Audio
SMS Indication: Yes
Network Carrier Information: Yes
Pandora Link (BT): Yes
App Remote (BT): Yes
Auto-paring for iOS devices: Yes
NFC Feature
NFC One-touch connection: Yes
USB Feature
Maximum Current: 1.5A
USB-capable
USB Mass Strage Device: Yes
USB Mass Strage Device Control Feature
Repeat: OFF/ TRACK/ ALBUM
Shuffle: OFF/ALBUM/DEVICE
Pause: Yes
Resume Play: Yes
CODEC (for USB): MP3, WMA, WAV
List Browsing (Folders/Files): Yes
Jump Mode: Yes
Specifications chart Tuner
FM:Tuning range(MHz): 87.5-107.9,87.5-108.0
MW:Tuning range(kHz): 531-1602,530-1710
FM:Usable sensitivity (75 ohm)(dBf): 8
FM:Intermediate frequency(MHz): 25KHz
FM:Selectivity (400 kHz) (dB): 75
FM:S/N ratio (mono) (dB): 80(stereo)
FM:Channel separation (dB): 50
FM:Frequency response(Hz): 20 - 15k
MW/LW/SW:Sensitivity (75 ohm) MW/LW/SW(uV): 26/-/-
Specifications Chart: General
Preout output level(V): 5
Preout impedance(ohms): 220
Maximum output power (4ohm, 1kHz, 16V)(W): 55
Dimensions (WxHxD)(mm): 178x100x177
Mounting dimensions (WxHxD)(mm): 182x111x160
Weight(kg): 1.4kg
Others
C/O indication: yes
Accessory
Connector type: 16P (Small type)
Ant connector: JASO
Trim Ring (Color): Yes (Soft collar)
Cap for AUX-IN: NA
Cover for Rear USB terminal: NA
Safety Standard
AUS/NZL: Yes
